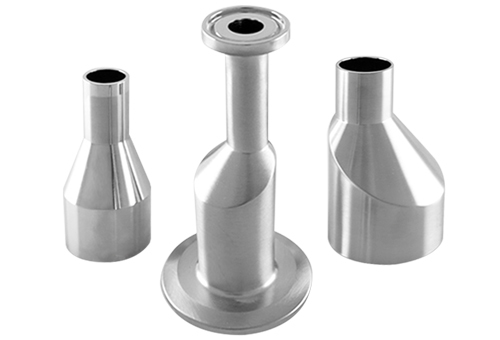

AL-6XN®合金减速器
Central States Industrial (CSI) stocks concentric and eccentric reducers in corrosion-resistant super alloy AL-6XN® with Tri-Clamp® or butt weld connections. Choose from a variety of connections combinations to find the reducer that fits your process.
对于需要3-A卫生标准或ASME-BPE标准的应用程序,CSI股票食品,乳制品和饮料的减速剂andBPE减速器在304和316L中。我们还提供Hastelloy®C-22®减速机为了更耐腐蚀性。
楷模
Dimensions are consistent with industry standards.
Surface Finish Options
BPE表面完成码 | CSI表面完成码 | Product Contact Surface (Max RA)* |
Product Contact Surface Finish Treatment (ID) |
非产品接触面 (Max RA) |
非产品联系 表面处理处理 (OD) |
尺寸和公差 (BPE)或(CSI) |
---|---|---|---|---|---|---|
N / A. | PU | N / A. | 未溶血/磨坊 | N / A. | 未溶血/磨坊 | CSI |
N / A. | 7. | 32μ英寸 (0.81 µm) |
Mechanical Polish/As Drawn | 32μ英寸 (0.81 µm) |
Mechanical Polish | CSI |
SF1 | PL | 20 µ-inch (0.51μm) |
Mechanical Polish/As Drawn | 32μ英寸 (0.81 µm) |
Mechanical Polish | BPE |
SF5 | PO | 20 µ-inch (0.51μm) |
电力研制 | 32μ英寸 (0.81 µm) |
Mechanical Polish | BPE |
SF6 | P25. | 25 µ-inch (0.64 µm) |
电力研制 | 32μ英寸 (0.81 µm) |
Mechanical Polish | BPE |
同心焊接器,2019年BPEC31-Size-Al6xn-Finish
一种L-6XN Material Part # (PL Finish) |
一种L-6XN Material Part # (PO完成) |
尺寸od. (在) |
一种 (在) |
---|---|---|---|
C31-0.75X0.5-AL6XN-PL | C31-0.75X0.5-AL6XN-PO | ¾ x ½ | 2.125 |
C31-1X0.5-AL6XN-PL | C31-1X0.5-AL6XN-PO | 1x½. | 2.500 |
C31-1X0.75-AL6XN-PL | C31-1X0.75-AL6XN-PO | 1 x¾ | 2.125 |
C31-1.5x0.75-AL6XN-PL | C31-1.5x0.75-al6xn-po | 1½ x ¾ | 3.000 |
C31-1.5x1-AL6XN-PL | C31-1.5x1-AL6XN-PO | 1½x 1 | 2.500 |
C31-2X1-AL6XN-PL | C31-2X1-AL6XN-PO | 2 x 1 | 3.375 |
C31-2X1.5-AL6XN-PL | C31-2X1.5-AL6XN-PO | 2 x 1½ | 2.500 |
C31-2.5x1.5-AL6XN-PL | C31-2.5x1.5-AL6XN-PO | 2½x1½. | 3.375 |
C31-2.5X2-AL6XN-PL | C31-2.5X2-AL6XN-PO | 2½x 2 | 2.500 |
C31-3X1.5-AL6XN-PL | C31-3X1.5-AL6XN-PO | 3 x 1½ | 4.250 |
C31-3X2-AL6XN-PL | C31-3X2-AL6XN-PO | 3 x 2 | 3.375 |
C31-3x2.5-AL6XN-PL | C31-3x2.5-AL6XN-PO | 3 x 2½ | 2.625 |
C31-4X2-AL6XN-PL | C31-4X2-AL6XN-PO | 4 x 2 | 5.125 |
C31-3x2.5-AL6XN-PL |
C31-3x2.5-AL6XN-PO | 4 x 2½ | 4.250 |
C31-4X3-AL6XN-PL | C31-4x3-AL6XN-PO | 4 x 3. |
3.875 |
2019年BPE DT-4.1.3-1
Eccentric Weld Reducers, 2019 BPEC32-Size-Al6xn-Finish
一种L-6XN Material Part # (PL Finish) |
一种L-6XN Material Part # (PO完成) |
尺寸od. (在) |
一种 (在) |
---|---|---|---|
C32-0.75X0.5-AL6XN-PL | C32-0.75X0.5-AL6XN-PO | ¾ x ½ | 2.125 |
C32-1X0.5-AL6XN-PL | C32-1X0.5-AL6XN-PO | 1x½. | 2.500 |
C32-1X0.75-AL6XN-PL | C32-1X0.75-AL6XN-PO | 1 x¾ | 2.125 |
C32-1.5x0.75-AL6XN-PL | C32-1.5x0.75-AL6XN-PO | 1½ x ¾ | 3.000 |
C32-1.5x1-AL6XN-PL | C32-1.5x1-AL6XN-PO | 1½x 1 | 2.500 |
C32-2X1-AL6XN-PL | C32-2X1-AL6XN-PO | 2 x 1 | 3.375 |
C32-2X1.5-AL6XN-PL | C32-2X1.5-AL6XN-PO | 2 x 1½ | 2.500 |
C32-2.5x1.5-AL6XN-PL | C32-2.5x1.5-AL6XN-PO | 2½x1½. | 3.375 |
C32-2.5X2-AL6XN-PL | C32-2.5X2-AL6XN-PO | 2½x 2 | 2.500 |
C32-3X1.5-AL6XN-PL | C32-3X1.5-AL6XN-PO | 3 x 1½ | 4.250 |
C32-3X2-AL6XN-PL | C32-3X2-AL6XN-PO | 3 x 2 | 3.375 |
C32-3X2.5-AL6XN-PL | C32-3x2.5-AL6XN-PO | 3 x 2½ | 2.625 |
C32-4x2-AL6XN-PL | C32-4X2-AL6XN-PO | 4 x 2 | 5.125 |
C32-4X2.5-AL6XN-PL |
C32-4X2.5-AL6XN-PO | 4 x 2½ | 4.250 |
C32-4X3-AL6XN-PL | C32-4x3-AL6XN-PO | 4 x 3. |
3.875 |
2019年BPE DT-4.1.3-1
同心Tri-Clamp X对接焊接减速器,2019 BPEC31M - Size-Al6xn-Finish
一种L-6XN Material Part # (PL Finish) |
一种L-6XN Material Part # (PO完成) |
尺寸od. (在) |
一种 (在) |
---|---|---|---|
C31M-0.75X0.5-AL6XN-PL | C31M-0.75x0.5-AL6XN-PO | ¾ x ½ | 2.625 |
C31M-1X0.5-AL6XN-PL | C31M-1X0.5-AL6XN-PO | 1x½. | 3.000 |
C31M-1X0.75-AL6XN-PL | C31M-1X0.75-AL6XN-PO | 1 x¾ | 2.625 |
C31M-1.5X0.75-AL6XN-PL | C31M-1.5x0.75-AL6XN-PO | 1½ x ¾ | 3.500 |
C31M-1.5x1-AL6XN-PL | C31M-1.5X1-AL6XN-PO | 1½x 1 | 3.000 |
C31M-2X1-AL6XN-PL | C31M-2X1-AL6XN-PO | 2 x 1 |
3.875 |
C31M.-2X1.5-AL6XN-PL | C31M.-2X1.5-AL6XN-PO | 2 x 1½ | 3.000 |
C31M.-2.5X1.5-AL6XN-PL | C31M.-2.5X1.5-AL6XN-PO | 2½x1½. | 3.875 |
C31M.-2.5X2-AL6XN-PL | C31M.-2.5X2-AL6XN-PO | 2½x 2 | 3.000 |
C31M.-3X1.5-AL6XN-PL | C31M.-3X1.5-AL6XN-PO | 3 x 1½ | 4.750 |
C31M.-3X2-AL6XN-PL | C31M.-3X2-AL6XN-PO | 3 x 2 | 3.875 |
C31M-3X2.5-AL6XN-PL | C31M-3X2.5-AL6XN-PO | 3 x 2½ | 3.125 |
C31M-4X2-AL6XN-PL | C31M-4X2-AL6XN-PO | 4 x 2 | 5.750. |
C31M-4X2.5-AL6XN-PL | C31M-4X2.5-AL6XN-PO | 4 x 2½ | 4.875 |
C31M.-4X3-AL6XN-PL | C31M.-4X3-AL6XN-PO | 4 x 3. | 4.500 |
2019年BPE DT-4.1.3-2
Eccentric Tri-Clamp x Butt Weld Reducers, 2019 BPE
C32M-Size-Al6xn-Finish
一种L-6XN Material Part # (PL Finish) |
一种L-6XN Material Part # (PO完成) |
尺寸od. (在) |
一种 (在) |
---|---|---|---|
C32M-0.75x0.5-AL6XN-PL | C32M-0.75x0.5-AL6XN-PO | ¾ x ½ | 2.625 |
C32M.-1X0.5-AL6XN-PL | C32M.-1X0.5-AL6XN-PO | 1x½. | 3.000 |
C32M-1X0.75-AL6XN-PL | C32M-1x0.75-AL6XN-PO | 1 x¾ | 2.625 |
C32M-1.5X0.75-AL6XN-PL | C32M-1.5X0.75-AL6XN-PO | 1½ x ¾ | 3.500 |
C32M-1.5x1-AL6XN-PL | C32M-1.5x1-AL6XN-PO | 1½x 1 | 3.000 |
C32M-2X1-AL6XN-PL | C32M-2X1-AL6XN-PO | 2 x 1 |
3.875 |
C32M.-2X1.5-AL6XN-PL | C32M.-2X1.5-AL6XN-PO | 2 x 1½ | 3.000 |
C32M.-2.5X1.5-AL6XN-PL | C32M.-2.5X1.5-AL6XN-PO | 2½x1½. | 3.875 |
C32M.-2.5X2-AL6XN-PL | C32M.-2.5X2-AL6XN-PO | 2½x 2 | 3.000 |
C32M.-3X1.5-AL6XN-PL | C32M.-3X1.5-AL6XN-PO | 3 x 1½ | 4.750 |
C32M-3X2-AL6XN-PL | C32M-3X2-AL6XN-PO | 3 x 2 | 3.875 |
C32M-3X2.5-AL6XN-PL | C32M-3X2.5-AL6XN-PO | 3 x 2½ | 3.125 |
C32M-4X2-AL6XN-PL | C32M-4X2-AL6XN-PO | 4 x 2 | 5.750. |
C32M-4X2.5-AL6XN-PL | C32M-4X2.5-AL6XN-PO | 4 x 2½ | 4.875 |
C32M-4X3-AL6XN-PL | C32M-4X3-AL6XN-PO | 4 x 3. | 4.500 |
2019年BPE DT-4.1.3-2
同心Tri-Clamp Reducers,2019 BPEC31-14MP尺寸-Al6xn-Finish
2019年BPE DT-4.1.3-3
Eccentric Tri-Clamp Reducers, 2019 BPEC32-14MP尺寸-AL6XN-完成
2019年BPE DT-4.1.3-3
同心对接焊接减速器31W尺寸 - 材质
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
31W-0.75X0.5-AL6XN-7 | ¾ x ½ | 1.000 |
31W-1X0.5-AL6XN-7 | 1x½. | 1.500 |
31W-1X0.75-AL6XN-7 | 1 x¾ | 1.000 |
31W-1.5X0.5-AL6XN-7 | 1½ x ½ | 2.500 |
31W-1.5X0.75-AL6XN-7 | 1½ x ¾ | 2.000 |
31W-1.5X1-AL6XN-7 | 1½x 1 | 2.007 |
31W-2X0.75-AL6XN-7 | 2 x¾ | 5.000 |
31W-2X1-AL6XN-7 | 2 x 1 | 4.000 |
31W-2X1.5-AL6XN-7 | 2 x 1½ | 2.000 |
31W-2.5X1-AL6XN-7 | 2½x 1 | 6.000 |
31W-2.5X1.5-AL6XN-7 | 2½x1½. | 4.000 |
31W-2.5X2-AL6XN-7 | 2½x 2 | 2.000 |
31W-3X1-AL6XN-7 | 3 x 1 | 8.000 |
31W-3X1.5-AL6XN-7 | 3 x 1½ | 6.000 |
31W-3X2-AL6XN-7 | 3 x 2 | 4.014 |
31W-3X2.5-AL6XN-7 | 3 x 2½ | 2.007 |
31W-4X1.5-AL6XN-7 | 4 x 1½ | 10.000 |
31W-4X2-AL6XN-7 | 4 x 2 | 8.000 |
31W-4X2.5-AL6XN-7 | 4 x 2½ | 6.000 |
31W-4X3-AL6XN-7 | 4 x 3. | 4.000 |
偏心对接焊接减速器32W尺寸 - 材质
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
32W-0.75X0.5-AL6XN-7 | ¾ x ½ | 1.000 |
32W-1X0.5-AL6XN-7 | 1x½. | 1.500 |
32W-1X0.75-AL6XN-7 | 1 x¾ | 1.000 |
32W-1.5X0.5-AL6XN-7 | 1½ x ½ | 2.500 |
32W-1.5X0.75-AL6XN-7 | 1½ x ¾ | 2.000 |
32W-1.5X1-AL6XN-7 | 1½x 1 | 2.007 |
32W-2X0.75-AL6XN-7 | 2 x¾ | 5.000 |
32W-2X1-AL6XN-7 | 2 x 1 | 4.000 |
32W-2X1.5-AL6XN-7 | 2 x 1½ | 2.000 |
32W-2.5X1-AL6XN-7 | 2½x 1 | 6.000 |
32W-2.5X1.5-AL6XN-7 | 2½x1½. | 4.000 |
32W-2.5X2-AL6XN-7 | 2½x 2 | 2.000 |
32W-3X1-AL6XN-7 | 3 x 1 | 8.000 |
32W-3X1.5-AL6XN-7 | 3 x 1½ | 6.000 |
32W-3X2-AL6XN-7 | 3 x 2 | 4.014 |
32W-3X2.5-AL6XN-7 | 3 x 2½ | 2.007 |
32W-4X1.5-AL6XN-7 | 4 x 1½ | 10.000 |
32W-4X2-AL6XN-7 | 4 x 2 | 8.000 |
32W-4X2.5-AL6XN-7 | 4 x 2½ | 6.000 |
32W-4X3-AL6XN-7 | 4 x 3. | 4.000 |
同心对接焊接Reducers,2009 BPEB31-Size-Material-Finish
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
B31-0.75X0.5-AL6XN-7 | ¾ x ½ | 4.000 |
B31-1X0.5-AL6XN-7 | 1x½. | 4.500 |
B31-1X0.75-AL6XN-7 | 1 x¾ | 4.000 |
b31-1.5x0.5-al6xn-7 | 1½ x ½ | 5.500 |
b31-1.5x0.75-al6xn-7 | 1½ x ¾ | 5.000 |
B31-1.5X1-AL6XN-7 | 1½x 1 | 5.000 |
B31-2X1-AL6XN-7 | 2 x 1 | 7.250 |
B31-2X1.5-AL6XN-7 | 2 x 1½ | 5.250 |
b31-2.5x1-al6xn-7 | 2½x 1 | 9.250 |
b31-2.5x1.5-al6xn-7 | 2½x1½. | 7.250 |
B31-2.5X2-AL6XN-7 | 2½x 2 | 5.500 |
B31-3X1-AL6XN-7 | 3 x 1 | 11.250 |
B31-3X1.5-AL6XN-7 | 3 x 1½ | 9.250 |
B31-3X2-AL6XN-7 | 3 x 2 | 7.。500 |
b31-3x2.5-al6xn-7 | 3 x 2½ | 5.500 |
B31-4X2-AL6XN-7 | 4 x 2 | 11.750 |
b31-4x2.5-al6xn-7 | 4 x 2½ | 9.750. |
b31-4x3-al6xn-7 | 4 x 3. | 7.。7.50 |
偏心对接焊接减速器,2009年BPEB32-Size-Material-Finish
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
b32-0.75x0.5-al6xn-7 | ¾ x ½ | 4.000 |
b32-1x0.5-al6xn-7 | 1x½. | 4.500 |
b32-1x0.75-al6xn-7 | 1 x¾ | 4.000 |
B32-1.5X0.5-AL6XN-7 | 1½ x ½ | 5.500 |
b32-1.5x0.75-al6xn-7 | 1½ x ¾ | 5.000 |
b32-1.5x1-al6xn-7 | 1½x 1 | 5.000 |
B32-2X1-AL6XN-7 | 2 x 1 | 7.250 |
B32-2X1.5-AL6XN-7 | 2 x 1½ | 5.250 |
b32-2.5x1-al6xn-7 | 2½x 1 | 9.250 |
b32-2.5x1.5-al6xn-7 | 2½x1½. | 7.250 |
b32-2.5x2-al6xn-7 | 2½x 2 | 5.500 |
B32-3X1-AL6XN-7 | 3 x 1 | 11.250 |
b32-3x1.5-al6xn-7 | 3 x 1½ | 9.250 |
B32-3X2-AL6XN-7 | 3 x 2 | 7.。500 |
b32-3x2.5-al6xn-7 | 3 x 2½ | 5.500 |
b32-4x2-al6xn-7 | 4 x 2 | 11.750 |
b32-4x2.5-al6xn-7 | 4 x 2½ | 9.750. |
b32-4x3-al6xn-7 | 4 x 3. | 7.。7.50 |
Concentric Tri-Clamp x Butt Weld Reducers, 2009 BPEB31M-Size-Material-Finish
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
B31M-0.75x0.5-AL6XN-7 | ¾ x ½ | 3.000 |
B31M-1X0.5-AL6XN-7 | 1x½. | 3.500 |
B31M-1X0.75-AL6XN-7 | 1 x¾ | 3.000 |
B31M-1.5X0.75-AL6XN-7 | 1½ x ¾ | 4.000 |
B31M-1.5X1-AL6XN-7 | 1½x 1 | 4.000 |
B31M-2X1-AL6XN-7 | 2 x 1 | 6.000 |
B31M-2X1.5-AL6XN-7 | 2 x 1½ | 4.000 |
B31M-2.5x1.5-AL6XN-7 | 2½x1½. | 6.000 |
B31M-2.5X2-AL6XN-7 | 2½x 2 | 4.250 |
B31M-3X2-AL6XN-7 | 3 x 2 | 6.250 |
B31M-3X2.5-AL6XN-7 | 3 x 2½ | 4.250 |
B31M-4X2.5-AL6XN-7 | 4 x 2½ | 8.375 |
B31M-4X3-AL6XN-7 | 4 x 3. | 6.375. |
偏心三夹X对接焊缝减速器,2009 BPEB32M-Size-Material-Finish
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
B32M-0.75X0.5-AL6XN-7 | ¾ x ½ | 3.000 |
b32m-1x0.5-al6xn-7 | 1x½. | 3.500 |
B32M-1X0.75-AL6XN-7 | 1 x¾ | 3.000 |
b32m-1.5x0.75-al6xn-7 | 1½ x ¾ | 4.000 |
B32M-1.5X1-AL6XN-7 | 1½x 1 | 4.000 |
B32M-2X1-AL6XN-7 | 2 x 1 | 6.000 |
B32M-2X1.5-AL6XN-7 | 2 x 1½ | 4.000 |
B32M-2.5X1.5-AL6XN-7 | 2½x1½. | 6.000 |
B32M-2.5x2-AL6XN-7 | 2½x 2 | 4.250 |
B32M-3X2-AL6XN-7 | 3 x 2 | 6.250 |
B32M-3X2.5-AL6XN-7 | 3 x 2½ | 4.250 |
B32M-4X2.5-AL6XN-7 | 4 x 2½ | 8.375 |
B32M-4X3-AL6XN-7 | 4 x 3. | 6.375. |
Concentric Tri-Clamp Reducers, 2009 BPEB31-14MP尺寸 - 材料
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
B31-14MP-0.75x0.5-AL6XN-7 | ¾ x ½ | 2.000 |
B31-14MP-1x0.5-AL6XN-7 | 1x½. | 2.500 |
B31-14MP-1X0.75-AL6XN-7 | 1 x¾ | 2.000 |
B31-14MP-1.5X0.5-AL6XN-7 | 1 ½ x ½ | 3.500 |
B31-14MP-1.5x0.75-AL6XN-7 | 1 ½ x ¾ | 3.000 |
B31-14MP-1.5x1-AL6XN-7 | 1½x 1 | 3.000 |
B31-14MP-2X1-AL6XN-7 | 2 x 1 | 5.000 |
B31-14MP-2X1.5-AL6XN-7 | 2 x 1½ | 3.000 |
B31-14MP-2.5x1-AL6XN-7 | 2½x 1 | 7.000 |
B31-14MP-2.5x2-AL6XN-7 | 2½x 2 | 3.000 |
B31-14MP-3X1.5-AL6XN-7 | 3 x 1½ | 7.000 |
B31-14MP-3X2-AL6XN-7 | 3 x 2 | 5.000 |
B31-14MP-3X2.5-AL6XN-7 | 3 x 2½ | 3.000 |
B31-14MP-4X3-AL6XN-7 | 4 x 3. | 5.125 |
偏心三钳重新装订,2009年BPEB32-14MP尺寸 - 材料表面
一种L-6XN Material Part # (7 Finish) |
尺寸od. (在) |
一种 (在) |
---|---|---|
B32-14MP.-0.75X0.5-AL6XN-7 | ¾ x ½ | 2.000 |
B32-14MP-1x0.5-AL6XN-7 | 1x½. | 2.500 |
B32-14MP-1X0.75-AL6XN-7 | 1 x¾ | 2.000 |
B32-14MP.-1.5X0.5-AL6XN-7 | 1½ x ½ | 3.500 |
B32-14MP-1.5x0.75-AL6XN-7 | 1½ x ¾ | 3.000 |
B32-14MP.-1.5X1-AL6XN-7 | 1½x 1 | 3.000 |
B32-14MP-2X1-AL6XN-7 | 2 x 1 | 5.000 |
B32-14MP-2X1.5-AL6XN-7 | 2 x 1½ | 3.000 |
B32-14MP-2.5x1-AL6XN-7 | 2½x 1 | 7.000 |
B32-14MP-3X2-AL6XN-7 | 3 x 2 | 5.000 |
B32-14MP-3X2.5-AL6XN-7 | 3 x 2½ | 3.000 |
B32-14MP.-4X2-AL6XN-7 | 4 x 2 | 9.125 |
B32-14MP.-4X3-AL6XN-7 | 4 x 3. | 5.125 |
更多减速器
对于满足3-A卫生或BPE标准的304和316L减速器,访问食品,乳制品和饮料的减速剂andBPE减速器页面。需要更耐腐蚀的减速器?看看Hastelloy C-22减速剂页面以获取其他材料选项。
Still don't see what you need? Call CSI for configurations not listed or for定制制造。
Product Resources
查看所有资源雷竞技好吗CSI创建MyCSI仪表板以节省资源以获取快速参考,跟踪订单,与专家交谈雷竞技好吗。
只要一分钟。
Sign in
Sign in to save resource to your dashboard.
文学for AL-6XN® Alloy Reducers have been saved to your dashboard!
文学for AL-6XN® Alloy Reducers are already in your dashboard.
