食品,乳制品和饮料的套圈

CSI股票来自Alfa Laval的数千种卫生三夹套圈,因此我们可以在您需要时为您提供您所需要的。

Alfa Laval's 304 and 316L ferrules are compliant with the 3-A sanitary standards; all surfaces are polished to 32 microinch Ra or better. Alfa Laval continues to lead the industry with fittings that are produced to the high standards you’ve come to expect: durability, problem-free welding and assembly, and the highest possible strength.

For ferrules that meet BPE specifications, check out ourBPE套圈。CSI还提供AL-6XN® Alloy FerrulesandHastelloy®C-22®套圈为了更耐腐蚀性。

These fittings are 3-A approved.

Tri-Clamp®Ferrules, MediumL14尺寸 - 材料 - 表面
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

l14a.M-1-304-7 l14a.M-1-316L-7 1 1.13
l14a.M-1.5-304-7 l14a.M-316L-7 1.13
l14a.M-2-304-7 l14a.M-2-316L-7 2 1.13
L14AM-2.5-304-7 l14a.M-2.5-316L-7 1.13
l14a.M-3-304-7 L14AM-3-316L-7 3 1.13
L14AM-4-304-7 l14a.M-4-316L-7 4 1.13

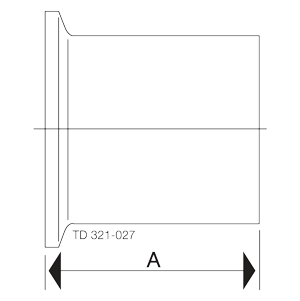

Tri-Clamp Ferrule, Medium

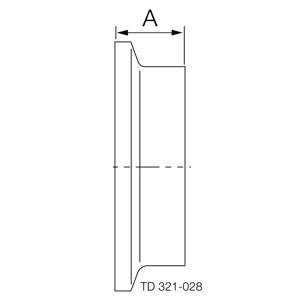

Tri-Clamp套圈,短14WMPS尺寸 - 材质
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

- 14WMPS-0.5-316L-7 ½ 0.50
- 14WMP.-0.75-316L-7 3/4 0.50
14WMP.-1-304-7 14WMPS-1-316L-7 1 0.50
14WMP.-1.5-304-7 14WMPS-1.5-316L-7 0.50
14WMP.-2-304-7 14WMP.-2-316L-7 2 0.50
14WMPS-2.5-304-7 14WMP.-2.5-316L-7 0.50
14WMP.-3-304-7 14WMP.-3-316L-7 3 0.50
14WMP.-4-304-7 14WMP.-4-316L-7 4 0.63
14个理财产品里- 6 - 304 - 7 14WMPS-6-316L-7 6 0.75
14WMP.
Tri-Clamp Ferrules, Large14WMO-Size-Material-Finish
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

14WMO-6-304-7 14WMO-6-316L-7 6 1.50
14WMO-8-304-7 14WMO-8-316L-7 8 1.50
14WMO-10-304-7 14WMO-10-316L-7 10 1.75
14WMO-12-304-7 14WMO-12-316L-7 12 1.75
14WMP.

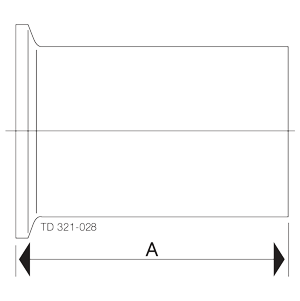

轻型罐三夹套圈14WL.MP-Size-Material-Finish
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

14WL.MP-1-304-7 14WL.MP-1-316L-7 1 3.00
14WLMP-1.5-304-7 14WL.MP-1.5-316L-7 3.00
14WL.MP-2-304-7 14WLMP-2-316L-7 2 3.00
14WL.MP-2.5-304-7 14WL.MP-2.5-316L-7 3.00
14WL.MP-3-304-7 14WL.MP-3-316L-7 3 4.00
14WL.MP-4-304-7 14WLMP-4-316L-7 4 4.00
14WL.MP

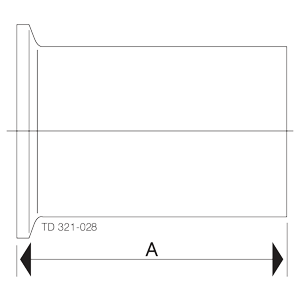

轻型罐三夹套圈, Large14WLMO尺寸 - 材质
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

14WLMO-6-304-7 14WL.MO-6-316L-7 6 6.00
14WL.MO
Heavy Tank Tri-Clamp Ferrules14MPW.-Size-Material-Finish
304材料部分#

(7 finish)

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

B

(in)

C

(in)

14MPW.-1-304-7 14MPW-1-316L-7 1 1.63 0.88 1.16
14MPW-1.5-304-7 14MPW.-1.5-316L-7 1.63 1.38 1.67
14MPW.-2-304-7 14MPW.-2-316L-7 2 1.75 1.88 2.19
14MPW.-2.5-304-7 14MPW-2.5-316L-7 1.75 2.38 2.70
14MPW.-3-304-7 14MPW.-3-316L-7 3 1.81 2.88 3.22
14MPW.-4-304-7 14MPW-4-316L-7 4 2.13 3.83 4.25
14MPW.
Reducing Ferrules31WMP-Size-Material
316L Material Part #

(Mill finish)

Size OD

(in)

A

(in)

31WMP-0.75X0.5-316L ¾ x ½ 0.500
31WMP-1X0.5-316L. 1 x ½ 0.500
31WMP-1X0.75-316L 1 x ¾ 0.500
31WMP-1.5X0.5-316L 1½ x ½ 0.500
31WMP-1.5X0.75-316L 1½ x ¾ 0.625
31WMP-1.5X1-316L 1½x 1 0.500
31WMP-2X1-316L 2 x 1 0.500
31WMP-2X1.5-316L 2 x 1½ 0.500
31WMP-2.5X2-316L 2½x 2 0.500
31WMP-3X2-316L 3 x 2 0.500
31WMP-4X3-316L 4 x 3 0.625

Sizes and item numbers apply to tapered style reducing ferrules, as shown. Additional sizes and styles available upon request.

31WMP-Reducing-Ferrule

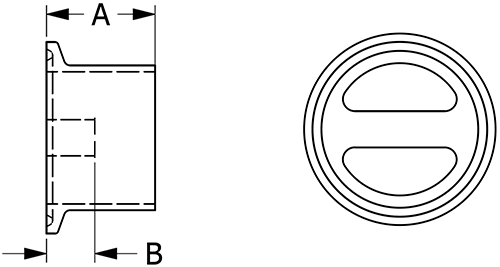

Cross Bar Ferrule
CBF.-Size-Material-Finish

横杆套圈设计用于满足3- A标准。配件用作射弹(猪)塞子。

316L Material Part #

(7 finish)

Size OD

(in)

A

(in)

B

(in)

CBF.-1.5-316L-7
1.5 1.125
0.50
CBF.-2.5-316L-7
2.5 1.125 0.50
CBF.-2-316L-7 2.0 1.125 0.50
CBF-3-316L-7
3.0 1.125 0.50
CBF.-4-316L-7 4.0 1.125 0.50
CBF.V-4-316L-7 4.5 1.125 0.50

注意:可应要求提供Hastelloy®C-22®和Al-6xN®。

cross-bar-ferrule
Roll On Tri-Clamp Ferrule
14RMP.-Size-Material-Finish
304材料部件号

(7 Finish)

Size OD

(in)

A

(in)

B

(in)

14RMP-1-304-7 1 0.75 1.00
14RMP-1.5-304-7 1.13 1.50
14RMP.-2-304-7 2 1.31 2.00
14RMP.-2.5-304-7 1.38 2.50
14RMP.-3-304-7 3 1.44 3.00
14RMP.-4-304-7 4 1.50 4.00
14rmp

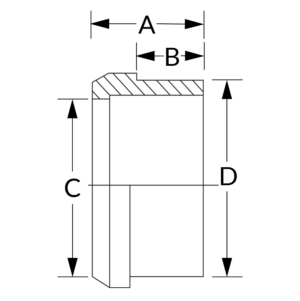

Plain Recessed Weld Bevel Seat Ferrule
14-Size-Material-Finish
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

B
(in)
C
(in)
D
(in)
14-1-304-7 1 0.75 0.50 0.88 1.00
14-1.5-304-7 0.88 0.63 1.38 1.50
14-2-304-7 2 0.97 0.69 1.88 2.00
14-2.5-304-7 1.06 0.75 2.38 2.50
14-3-304-7 3 1.13 0.81 2.88 3.00
14-4-304-7 4 1.25 0.94 3.83 4.00
14

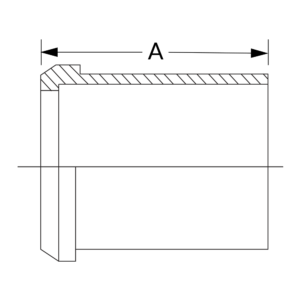

普通长焊接斜面座椅套圈
L14A尺寸 - 材料
304材料部分#

(7 Finish)

316L Material Part #
(7 Finish)
Size OD

(in)

A

(in)

l14a.-1-304-7 L14A-1-316L-7 1 1.38
L14A-1.5-304-7 L14A-1.5-316L-7 1.50
l14a.-2-304-7 l14a.-2-316L-7 2 1.50
l14a.-2.5-304-7 L14A-2.5-316L-7 1.75
l14a.-3-304-7 L14A-3-316L-7 3 1.75
l14a.-4-304-7 L14A-4-316L-7 4 1.75
l14a
普通的短焊接斜面座椅套圈
14PRFS-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
14PRFS-1-304-7 14PRFS-1-316L-7 1 0.69
14PRFS-1.5-304-7 14PRFS-1.5-316L-7 0.72
14PRFS-2-304-7 14PRFS-2-316L-7 2 0.72
14PRFS-2.5-304-7 14PRFS-2.5-316L-7 0.84
14PRFS-3-304-7 14PRFS-3-316L-7 3 0.91
14PRFS-4-304-7 14PRFS-4-316L-7 4 1.03
14PRFS

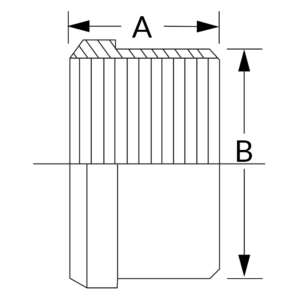

Plain Bevel Seat Ferrule for Expanding
14R尺寸 - 材料 - 表面
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

B
(in)
14R-1-304-7 1 0.750. 1.00
14R-1.5-304-7 1.125 1.50
14R-2-304-7 2 1.312 2.00
14R-2.5-304-7 1.375 2.50
14R-3-304-7 3 1.437 3.00
14R-4-304-7 4 1.500 4.00
14R
Plain Tank Weld Bevel Seat Ferrule
14W-Size-Material-Finish
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

B
(in)
C
(in)
14W-1-304-7 1 2.38 0.88 1.16
14W-1.5-304-7 2.53 1.38 1.67
14W-2-304-7 2 2.78 1.88 2.19
14W-2.5-304-7 3.06 2.38 3.22
14W-3-304-7 3 5.53 2.88 3.22
14W-4-304-7 4 4.31 3.83 1.25
14W

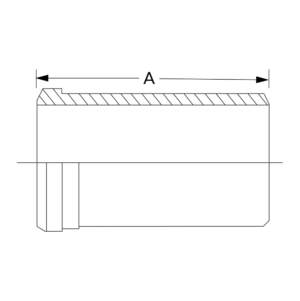

Plain Light Tank Weld Bevel Seal Ferrule
14wl尺寸 - 材料
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

14WL.-1-304-7 1 2.00
14WL.-1.5-304-7 2.25
14WL.-2-304-7 2 2.50
14WL-2.5-304-7 2.75
14WL.-3-304-7 3 3.00
14WL-4-304-7 4 4.00
14WL.
Threaded Recessed Weld Bevel Seat Ferrule
15尺寸材料 - 完成
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

B
(in)
C
(in)
D
(in)
15-1-304-7 1 0.81 0.50 0.88 1.00
15-1.5-304-7 0.88 0.63 1.38 1.50
15-2-304-7 2 1.03 0.69 1.88 2.00
15-2.5-304-7 1.13 0.75 2.38 2.50
15-3-304-7 3 1.25 0.81 2.88 3.00
15-4-304-7 4 1.38 0.94 3.83 4.00
15

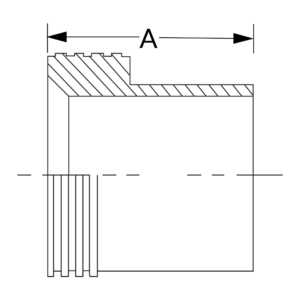

螺纹长焊接斜面座椅套圈
L15A尺寸 - 材料 - 表面
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
L15A-1-304-7 l15a.-1-316L-7 1 1.38
l15a.-1.5-304-7 l15a.-1.5-316L-7 1.50
L15A-2-304-7 l15a.-2-316L-7 2 1.50
L15A-2.5-304-7 L15A-2.5-316L-7 1.75
l15a - 3 - 304 - 7 l15a.-3-316L-7 3 1.75

l15a.-4-304-7

l15a.-4-316L-7 4 1.75
l15a.

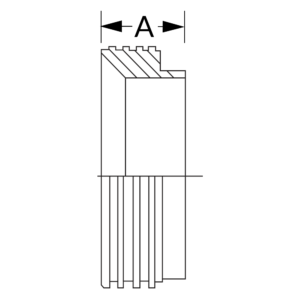

Threaded Short Weld Bevel Seat Ferrule
15TRFS-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
15TRFS-1-304-7 15TRFS-1-316L-7 1 0.69
15TRFS-1.5-304-7 15TRFS-1.5-316L-7 0.72
15TRFS-2-304-7 15TRFS-2-316L-7 2 0.72
15TRFS-2.5-304-7 15TRFS-2.5-316L-7 0.84
15TRFS-3-304-7 15TRFS-3-316L-7 3 0.91
15TRFS-4-304-7 15TRFS-4-316L-7 4 1.03
15TRFS

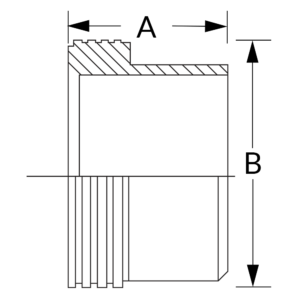

Threaded Bevel Seat Ferrule for Expanding
15R尺寸 - 材料 - 表面
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

15R-1-304-7 1 0.69
15R-1.5-304-7 0.72
15R-2-304-7 2 0.72
15R-2.5-304-7 0.84
15R-3-304-7 3 0.91
15R-4-304-7 4 1.03
15R

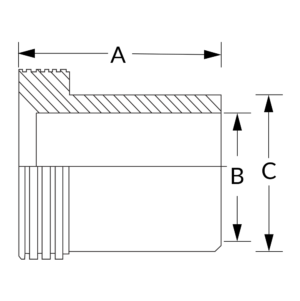

Threaded Tank Weld Bevel Seat Ferrule
15W-Size-Material-Finish
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

B
(in)
C
(in)
15W-1-304-7 1 1.50 0.88 1.25
15W-1.5-304-7 1.63 1.38 1.75
15W-2-304-7 2 1.75 1.88 2.31
15W-2.5-304-7 1.75 2.38 2.88
15W-3-304-7 3 1.81 2.88 3.38
15W-4-304-7 4 2.13 3.83 4.25
15W

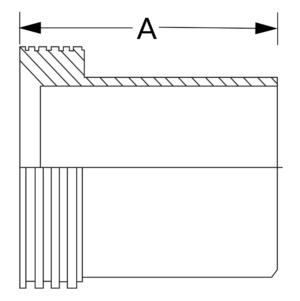

螺纹轻型罐斜面座垫套管
15WL-Size-Material-Finish
304材料部分#

(7 Finish)

Size OD
(in)
A

(in)

15WL-1-304-7 1 2.00
15WL-1.5-304-7 2.25
15WL-2-304-7 2 2.50
15WL-2.5-304-7 2.75
15wl-3-304-7 3 3.00
15WL-4-304-7 4 4.00
15WL

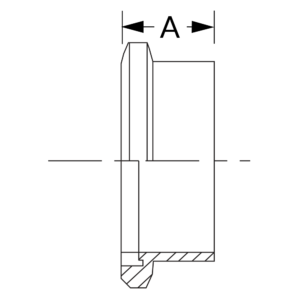

Threaded Short Weld DC Ferrule
15TRFDC.-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
15TRFDC-1.5-304-7 15TRFDC-1.5-316L-7 0.72
15TRFDC.-2-304-7 15TRFDC.-2-316L-7 2 0.75
15TRFDC.-2.5-304-7 15TRFDC.-2.5-316L-7 0.88
15TRFDC-3-304-7 15TRFDC.-3-316L-7 3 0.91
15TRFDC-4-304-7 15TRFDC-4-316L-7 4 10.3
15TRFDC.
Threaded Long Weld DC Ferrule
L15ADC尺寸 - 材料 - 完成
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
l15a.DC-1.5-304-7 l15a.DC-1.5-316L-7 1.50
L15ADC-2-304-7 L15ADC-2-316L-7 2 1.50
l15a.DC-2.5-304-7 L15ADC-2.5-316L-7 1.75
l15a.DC-3-304-7 L15ADC-3-316L-7 3 1.75
l15a.DC-4-304-7 l15a.DC-4-316L-7 4 1.75
l15a.DC

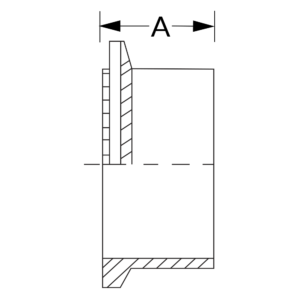

男性短焊接H线套圈
H-14W-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
N / A. H-14W-1-316L-7 1 1.00
H-14W-1.5-304-7 H-14W-1.5-316L-7 1.00
H-14W-2-304-7 H-14W-2-316L-7 2 1.00
H-14W-2.5-304-7 H-14W-2.5-316L-7 1.00
N / A. H-14W-3-316L-7 3 1.00
H-14W-4-304-7 H-14W-4-316L-7 4 1.00
H-14

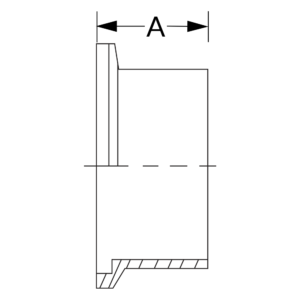

女性短焊接H线套圈
H-15W.-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
N / A. H-15W-1-316L-7 1 1.00
H-15W-1.5-304-7 H-15W.-1.5-316L-7 1.00
H-15W.-2-304-7 H-15W.-2-316L-7 2 1.00
H-15W.-2.5-304-7 H-15W.-2.5-316L-7 1.00
H-15W.-3-304-7 H-15W-3-316L-7 3 1.00
H-15W-4-304-7 H-15W.-4-316L-7 4 1.00
H-15W.
Male Short I-Line Ferrule
14Wi尺寸 - 材料表面
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
14Wi.-1-304-7 14Wi.-1-316L-7 1 0.78
14Wi.-1.5-304-7 14Wi.-1.5-316L-7 0.94
14Wi.-2-304-7 14WI-2-316L-7 2 1.03
14WI-2.5-304-7 14WI-2.5-316L-7 1.16
14Wi.-3-304-7 14Wi.-3-316L-7 3 1.22
14WI-4-304-7 14Wi.-4-316L-7 4 1.34
HDI-14W
Female Short I-Line Ferrule
15WI-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
15wi-1-304-7 15WI-1-316L-7 1 0.78
15WI-1.5-304-7 15wi-1.5-316L-7 0.94
15WI-2-304-7 15WI-2-316L-7 2 1.03
15WI-2.5-304-7 15WI-2.5-316L-7 1.16
15WI-3-304-7 15WI-3-316L-7 3 1.22
15WI-4-304-7 15WI-4-316L-7 4 1.34
HDI-15W

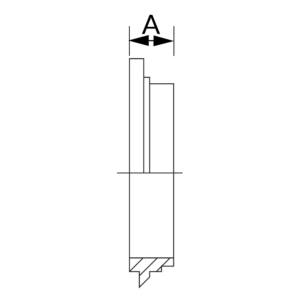

Plain Short Weld John Perry Ferrule
14PRFJP尺寸 - 材料
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)

14PRFJP.-1-304-7

14PRFJP.-1-316L-7 1 0.687
14PRFJP-1.5-304-7 14PRFJP.-1.5-316L-7 0.719
14PRFJP.-2-304-7 14PRFJP-2-316L-7 2 0.719
14PRFJP.-2.5-304-7 14PRFJP-2.5-316L-7 0.844
14PRFJP.-3-304-7 14PRFJP.-3-316L-7 3 0.906
14PRFJP.-4-304-7 14PRFJP.-4-316L-7 4 1.218
14PRFJP.
Threaded Short Weld John Perry Ferrule
15TRFJP-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
15TRFJP-1-304-7 15TRFJP-1-316L-7 1 0.69
15TRFJP-1.5-304-7 15TRFJP-1.5-316L-7 0.69
15TRFJP-2-304-7 15TRFJP-2-316L-7 2 0.75
15TRFJP-2.5-304-7 15TRFJP-2.5-316L-7 0.84
15TRFJP-3-304-7 15TRFJP-3-316L-7 3 0.88
15TRFJP-4-304-7 15TRFJP-4-316L-7 4 1.22
15TRFJP
普通焊接John Perry套圈
l14ajp.-Size-Material-Finish
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

l14ajp.-1.5-304-7 1.50
l14ajp.-2-304-7 2 1.50
L14AJP-2.5-304-7 1.75
L14AJP-3-304-7 3 1.75
l14ajp.-4-304-7 4 1.75
l14ajp.

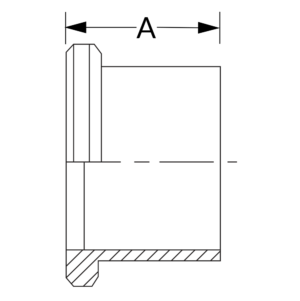

Threaded Long Weld John Perry Ferrule
L15AJP尺寸 - 材料 - 表面处理
304材料部分#

(7 Finish)

Size OD

(in)

A

(in)

L15AJP-1.5-304-7 1.50
L15AJP-2-304-7 2 1.50
L15AJP-2.5-304-7 1.75
L15AJP-3-304-7 3 1.75
l15a.JP-4-304-7 4 1.75
l15a.JP
IPS Sch. 5 Tri-Clamp Short Weld Ferrule
14WMV尺寸材料 - 表面处理
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
14WMV-1-304-7 14WMV-1-316L-7 1 0.50
14WMV-1.5-304-7 14WMV-1.5-316L-7 0.50
14WMV-2-304-7 14WMV-2-316L-7 2 0.50
14WMV-2.5-304-7 14WMV-2.5-316L-7 0.50
14WMV-3-304-7 14WMV-3-316L-7 3 0.50
14WMV-4-304-7 14WMV-4-316L-7 4 0.63
14WMV-6-304-7 14WMV-6-316L-7 6 0.88
14WMV-8-304-7 14WMV-8-316L-7 8 1.50
14WMV
IPS Sch. 5 Tri-Clamp Light Tank Weld Ferrule
14WL.MV-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
14WLMV-1-304-7 14WLMV-1-316L-7 1 3.00
14WL.MV-1.5-304-7 14WL.MV-1.5-316L-7 3.00
14WL.MV-2-304-7 14WL.MV-2-316L-7 2 3.00
14WLMV-2.5-304-7 14WL.MV-2.5-316L-7 3.00
14WL.MV-3-304-7 14WLMV-3-316L-7 3 4.00
14WL.MV-4-304-7 14WL.MV-4-316L-7 4 4.00
14WLMV-6-304-7 14WLMV-6-316L-7 6 6.00
14WL.MV-8-304-7 14WL.MV-8-316L-7 8 6.00
14WL.MV
IPS Sch. 5 Tri-Clamp Tank Weld Ferrule
14MVW.-Size-Material-Finish
304材料部分#

(7 Finish)

316L Material Part #

(7 Finish)

Size OD

(in)

A
(in)
B
(in)
C
(in)
14MVW.-1-304-7 14MVW.-1-316L-7 1 1.63 1.19 1.53
14MVW.-1.5-304-7 14MVW.-1.5-316L-7 1.63 1.77 2.11
14MVW-2-304-7 14MVW.-2-316L-7 2 1.75 2.25 2.59
14MVW-2.5-304-7 14MVW-2.5-316L-7 1.75 2.71 3.11
14MVW.-3-304-7 14MVW.-3-316L-7 3 1.81 3.33 3.56
14MVW.-4-304-7 14MVW.-4-316L-7 4 2.13 4.33 4.56
14MVW.
更多的套圈

对于满足BPE标准或更严格的要求的套圈,访问BPE套圈页。看看我们的AL-6XN® Alloy FerrulesandHastelloy®C-22®套圈其他材料选项的页面。

Still don't see what you need? Call CSI for configurations not listed or for定制制造

创建MyCSI仪表板以节省资源以获取快速参考,跟踪订单,与专家交谈雷竞技好吗。
